Thermal Interactions between High-power Packages and Heat Sinks, Part 2

Calculation Corner

Bruce Guenin, Assoc. Technical Editor



Introduction

These days, many thermal engineers face the challenge of defining effective heat sink cooling solutions for high power processors and ASICs (Application-Specific Integrated Circuits). The usual practice would be to calculate a value of Θ_JA (junction-to-air thermal resistance) for the combined package/heat sink assembly and compare it to the requirements of the application.

Traditionally, in performing this sort of calculation, one would first obtain a value of Θ_JC (junction-to-case thermal resistance) from the packaging supplier and a value of Θ_SA (sink-to-air thermal resistance) from the heat sink supplier. Since the heat sink test is usually performed with a uniform heat flux applied over the entire base, one would need to correct the value of Θ_SA, assuming that the heat is transferred into the heat sink uniformly over the entire contact area between the package and the heat sink. A very accurate and efficient method of doing this has been described in this publication [1]. One would then make assumptions about the thickness and thermal conductivity of prospective thermal interface materials (TIMs) to provide effective thermal contact between the package and the heat sink. The thermal resistance of this particular TIM, between the package case and the heat sink base (namely, TIM2) is referred to as Θ_CS.

The three thermal resistance values would then be added up to obtain the desired value of Θ_JA per the following expression:



Θ JA = Θ JC + ΘCS + Θ SA                                                                           (1)

This procedure worked well enough when power levels were lower than today. The accompanying higher values of thermal resistance masked the presence of certain thermal interactions that are important sources of error for high-power/low-thermal-resistance components. The fact that these resistances are not boundary-condition independent means that their precise value depends upon the details of the heat transfer between the various components [2]. This is due to the fact that these thermal resistance metrics are the product of a methodology, which ultimately represents a measurement approach: namely the temperatures T_J, T_C, and T_S, all are determined at the geometric center of each component [3]. Such single-point temperature measurements do not provide direct information regarding the heat flux distribution that could be useful in defining a more robust thermal resistance metric.



Summary of Part 1

Part 1 of this article was devoted to exploring the nuances of the interactions between these components, particularly as to their effect on the heat flux distribution in the path between the package case and the heat sink base [4].

Figure 1 depicts a typical configuration of a flip-chip cavity package containing a copper lid in contact with the base of a heat sink. Those components depicted using bold colors are explicitly represented in the Finite Element Analysis (FEA) model. These constitute the primary heat flow path, from the chip to the heat sink. Those drawn with the faint colors are present in the physical assembly, but are not explicitly represented in the model. These include the heat sink fins and the package substrate and the printed circuit board (PCB) to which the package is electrically interconnected. The cooling effect of the fins is accounted for by the use of an effective heat transfer coefficient (h_EFF) applied to the top of the heat sink base. The heat flow through the package substrate to the PCB is simply ignored, since in a high-power package, it is of secondary importance.

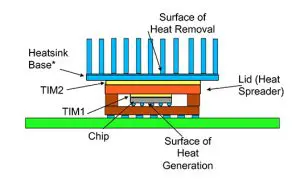

Figure 1. Diagram of high-power package attached to a heatsink. Components in bold color are explicitly represented in the model. Those in a faint color are part of the physical assembly, but are not represented in the model.



Table I defines the package construction and the variations in the heat sink design explored. The heat sink designs and the large spread in h_EFF represent a wide range of thermal performance.

Table 1. Model Dimensions, Materials, and Properties.



The curved data sets in Figure 2 demonstrate the heat flux distribution through the TIM2 material determined for the lowest and highest conductivity heat sinks, at a value of heat sink width, w_HS = 70 mm, and over the full range of h_EFF. They show that, even for a package with a 1 mm thick lid made of pure copper, the heat flux is concentrated in the center of the package, in stark contrast to the traditional assumption of uniform heat flow over the package area.

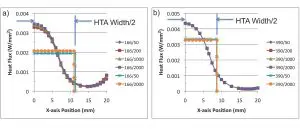

Figure 2. Plot of heat flux in TIM2 region, at specific values of k_HS and h_EFF. w_HS is constant at 70 mm. Curved data set: values extracted from full FEA model. Rectilinear data set: representation of HTA with constant flux. a) low conductivity Al heat sink; b) Cu heat sink.



The rectilinear data sets represent a uniform flux distributed over a specified area defined herein as the Heat Transfer Area (HTA). The HTA was defined in Part1 as: the area bounding a uniform flux region which produces the same value of Θ_SA as the FEA simulation with non-uniform flux distribution, each with the same total power. This procedure was decided upon because of its simplicity, rather than pursuing the more involved process of analyzing the actual flux distributions. For a square shaped die and package, such as in the current example, it is convenient to refer to the HTA Width, which provides a more intuitive sense of the size of the area than referring to the area itself.

Derivation and Use of the HTA Concept

Figure 3 shows curves of Θ_SA versus the full range of values of HTA Width possible with the present package: from the die width (13 mm) to the full package width (40 mm). These curves were calculated using FEA with only the heat sink base in the solid model and applying the flux at HTA values equal to 13, 20, 30, and 40 mm sq. (Note that this calculation could have been performed with equal accuracy using the method in Ref 1.) The curves were created using a third-order linear regression technique.

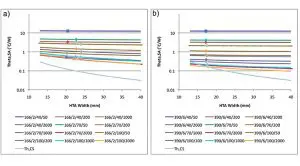

Figure 3. Plot of Θ_SA versus HTA Width at specific values of k_HS, w_HS, and h_EFF. Symbols represent FEA result for Θ_SA at intersection with Θ_SA curves, used to determine value of HTA for each heat sink condition. Lowest curve is Θ_CS vs HTA. a) low conductivity Al heat sink; b) Cu heat sink.

The symbol overlapping each curved line represents a value of HTA which yields a value of Θ_SA equal to that calculated in the full FEA model of the package in contact with the heat sink. A spreadsheet solver was used in the calculation. For the low conductivity heat sink they are clustered in the range of HTA Widths between 20 and 24 mm. For the high conductivity heat sink they are in the narrower range between 17 and 18 mm.

It is reasonable to expect that the HTA concept should be useful in the calculation of Θ_CS, as suggested by a comparison of the uniform flux distribution over the HTA and the actual flux distribution in Figure 2. Since the flux is assumed to be uniform within the HTA, the following expression, representing one-dimensional heat flow, can be used to calculate Θ_CS:

                                                                  (2)

Where t_TIM2 and k_TIM2 are the thickness and thermal conductivity of TIM2, respectively. Q_CS is plotted as a function of HTA in Figures 3a and 3b. It is useful to compare the magnitude of Θ_CS and Θ_SA for the two heat sinks studied. For the low conductivity heat sink, Θ_CS is much lower than the lowest value of Θ_SA. In the case of the high conductivity heat sink, Θ_CS is comparable in magnitude to the lowest values of Θ_SA. This fact will be relevant during the error analysis.

Figure 4 shows the calculated values of Θ_JC, plotted versus the heat sink thermal conductivity, k_HS, for all the cases studied. It also displays a value of Θ_JC, calculated under simulated JEDEC-standard conditions (water-cooled cold plate, 2-mm-thick copper top plate) [5]. Note this it is a bit lower in magnitude (0.002 ˚C/W) than the values of Θ_JC calculated for the package in contact with the copper heat sink, due to its greater thickness (6 mm vs. 2 mm). Θ_JC values calculated for the lowest conductivity heat sink are about 0.01 ˚C/W less than the simulated test value. Comparing these differences with the values of Θ_SA and Θ_CS in Figure 3 suggest that these deviations in Θ_JC in the full model from the simulated test value will not be a significant source of error.

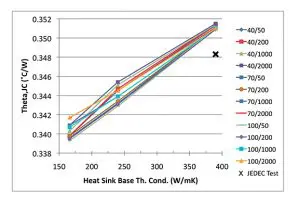

Figure 4. Plot of Θ_JC versus vs k_HS at specific values of w_HSand h_EFF: extracted from full package/heat sink FEA simulation. Black X symbol represents simulated JEDEC test result.



Figure 5 contains a plot of Θ_CS versus HTA Width. The values of Θ_CS were calculated using one of two methods: 1) extraction from the full package/heat sink FEA simulation and 2) calculation using Eqn. 2 and the values of HTA calculated using the method illustrated in Figure 3. The HTA-calculated values are approximately 0.08 ˚C/W less than the FEA-calculated values for the low conductivity heat sinks and 0.05 ˚C/W less for the high conductivity heat sinks. Comparing these discrepancies with the values of Θ_SA in Figure 3, suggest that this will be a more significant source of error.

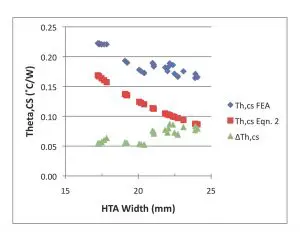

Figure 5. Plot of Θ_CS versus HTA. Blue symbols: values extracted from full package/heat sink FEA simulation. Red symbols: values calculated from Equation 2.

Simplified Theta, JA Calculations Using the HTA Concept

It is hoped that the preceding analysis has made it clear that the assumed size of the area bounding the heat flow between the package and the heat sink has a significant influence on the resultant values of Θ_CS and Θ_SA and, consequently, Θ_JA. This section will explore the accuracy of analytic calculations making various assumptions regarding the size of this bounding area.

Table 2 describes four methods, which differ in this assumption.

• Method #1 assumes the bounding area = the package area.
• Method #2 assumes the bounding area = a single value of HTA averaged over all the cases studies.
• Method #3 assumes the bounding area = average of HTA calculated for each of three heat sink configurations.
• Method #4 assumes the bounding area = the specific value of HTA calculated individually for each case.

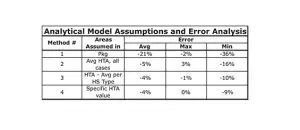

Table 2. Analytical Model Assumptions and Error Analysis.



Θ_JA is calculated using Eqn. 3:

(3)

The results calculated using each method were compared to the Θ_JA values calculated using the original FEA model. A complete listing of all the Θ_JA results is provided in Table 2 of Part 1 of this article [4]. The results are shown in Figure 6. The error is summarized in Table 2.

Figure 6. Error in value of Θ_JA, calculated using Equation. 3 versus Θ_JA, extracted from full package/heat sink FEA simulation. Results reflect effect of four different assumptions regarding the method of calculating the heat transfer area.

All the methods show an increase in the absolute error as the value of Q_JA gets smaller. Method #1, using the package size for the heat transfer area, has an error of less than 10% for values of Q_JA of 3 ˚C/W and greater. For Q_JA values of less than this, the error grows to 36%. Using the average HTA value of 20.6 mm, in Method #2 leads to a large reduction of error, with the maximum error equal to 16%. Further improvement is obtained with Method #3, using the value of HTA averaged for each heat sink design. Here the maximum error is 10%. Method #4, with a separate value of HTA applied to each case represented a small improvement with the maximum error equal to 9%. As indicated earlier, most of the error in Methods #4 and 5 is due to the Q_CS term.

Conclusions

The past practice of assuming a uniform heat flow between a package and heat sink over the full area of the package is shown to be inadequate with high-power packages. The HTA method uses the same assumption of a uniform flux as before, but uses a value for the bounding area determined from a detailed finite element analysis of the package and heat sink. For this method to become more widely useful, correlations are needed to generate appropriate HTA values for arbitrary package and heat sink designs. Once the appropriate HTA is on hand, then the remainder of the calculation is straightforward.



References

1. Lee, S., “Calculating Spreading Resistance in Heat Sinks,” ElectronicsCooling, Vol. 4., No. 1, January, 1998.
2. Lasance, C, “Heat Spreading: Not a Trivial Problem,” ElectronicsCooling, Vol. 14, No. 2, May, 2008.
3. JEDEC Standard, JESD-12, “Guidelines for Reporting and Using Electronic Package Thermal Information.”   Available for free download at www.jedec.com.
4. Guenin, B, “Thermal interactions Between High-Power Packages and Heat Sinks, Part 1, ElectronicsCooling, Vol. 16, No. 4, Winter, 2010.
5. JEDEC Standard, JESD-14, “Transient Dual Interface Test Method for the Measurement of the Thermal Resistance Junction to Case of Semiconductor Devices with Heat Flow Through a Single Path.” Available for free download at www.jedec.com.
